Working Principle

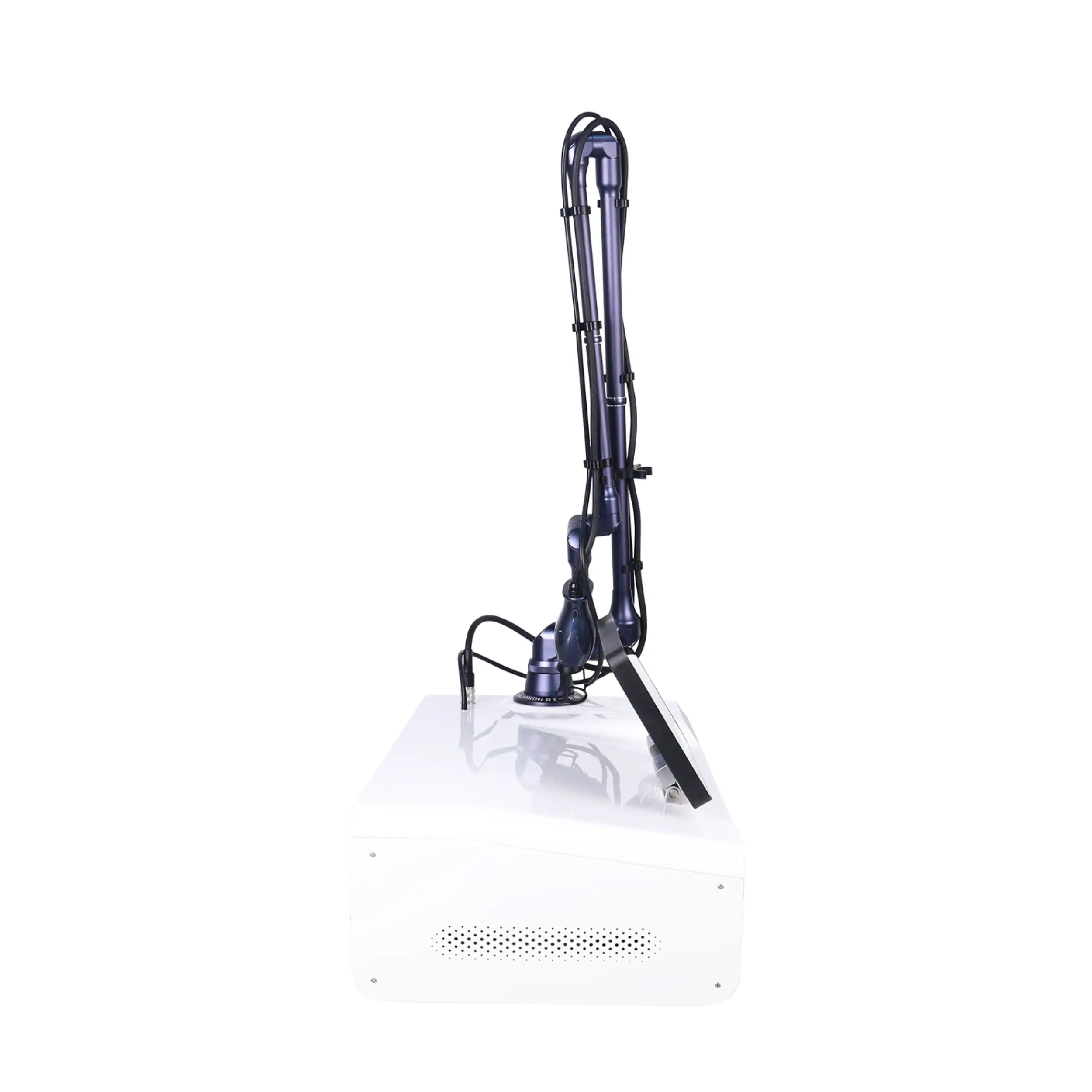

The ReFrax utilizes a radiofrequency excited metal CO₂ laser emitting at a wavelength of 10.6 μm to deliver fractional micro-beams through an optical guide arm. The ReFrax fractionally delivers controlled laser energy. It facilitates better retention of undamaged skin while enabling effective energy delivery without excessively damaging the surrounding area.

The fractional micro-beams emitted from ReFrax are absorbed by water in the skin and transformed into heat energy. This creates minute micro-ablation areas, boosting natural skin renewal. In time, this system can enhance the appearance of coarse skin texture, large pores, fine wrinkles, and uneven skin tone, revealing smoother, tighter, and rejuvenated skin.

Highlights and Advantages

Laser Up To 60 W

The laser power can be set up to 60 W, which will provide greater options to aestheticians in terms of increased efficiency of use and different levels of skin resurfacing.

Increased Stability of the Laser for Professional Skin Resurfacing

The laser is more stable and durable compared to the traditional glass CO₂ laser tube because of its sealed metal construction, allowing RF excitation with lower levels of gas contamination and more stable performance.

Triple Scanning Modes

Its Sequential, random, and center-split scanning modes allow providers to control energy distribution across the treatment area. This helps manage heat build-up, reduce excessive thermal concentration, and avoid excessive skin irritations during treatments.

Up to 20 × 20 mm Scanning Area

The system supports up to 20 × 20 mm scanning coverage, allowing larger areas to be treated more efficiently in one pass.

Integrated Air Cooling Design

ReFrax uses integrated air cooling without the need for water circulation. The compact structure makes the device easier to move, place, and operate in professional treatment rooms.

Built-In Operation Protection

ReFrax is equipped with a key lock, emergency stop switch, and red-light indicator to help prevent unintended operation, improve operational control, and support a more controlled treatment workflow.

Multiple-Scenario Uses for Skin Resurfacing Treatments

ReFrax is engineered for skin resurfacing and skin-texture improvement therapies:

• Skin Renewal
  Targeting fine lines, large pores, skin dullness, and sun damage for a smoother skin look.

• Skin Texture Improvement
  Treating skin roughness, post-acne marks, and other beauty concerns.

Benefits of Use

For Aesthetic Professionals

The user-friendly touch screen, pre-programmed treatment modes, customizable parameters, and scanning modes facilitate an easy learning process and efficient performance of operations. The machine allows operators to customize settings according to different skin zones, treatment objectives, and client comfort.

For Salon Owners

ReFrax assists you in adding new treatments such as skin resurfacing, refining texture, and skin rejuvenation plans that increase value in your service list. This portable device allows salons to deliver advanced treatments with the potential for package deals.

Specification

• Voltage: AC 220V/110V, 50–60 Hz

• Display: 10.1″ Color Touchscreen

• Shell Material: Metal + ABS

• Laser Type: RF Metal Tube CO₂ Laser

• Laser Wavelength: 10.6 μm

• Laser Power: 60 W

• RF Frequency: 1 MHz

• Output Modes: Pulse / Single Pulse / Continuous

• Spot Diameter: 80–200 μm Adjustable

• Maximum Scanning Area: 0.8″ × 0.8″ (20 × 20 mm)

• Minimum Scanning Area: 0.004″ × 0.004″ (0.1 × 0.1 mm)

• Cooling System: Forced Air Cooling

• Aiming Light: 650 nm Red Semiconductor Indicator Light

• Appearance Color: White + Light Gray

• Unit Dimensions: 24.3″ × 13.5″ × 6.9″ (61.6 × 34.2 × 17.5 cm)

• Package Dimensions: 35.4″ × 22.8″ × 12.2″ (90 × 58 × 31 cm)

• Gross Weight: 94.8 lbs (43 kg)

• Warranty: 36 Months

• Logo Customization: Support
