The 980nm laser is designed for visible vascular concerns, including spider veins on the body surface. Vascular tissue absorbs the high-energy 980nm laser, helping the targeted vessel area coagulate and gradually fade.

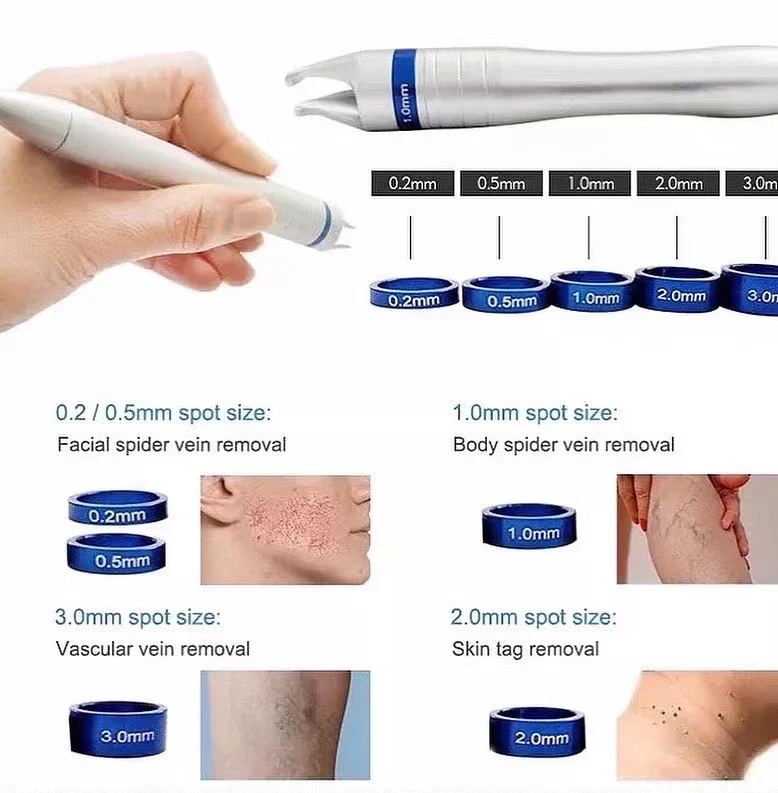

Compared with traditional laser methods that may cause larger areas of redness or heat exposure, this system uses a professional handpiece to focus the 980nm laser beam into a narrow 0.2–0.5mm diameter range. This helps deliver more focused energy to the target area while reducing unnecessary impact on the surrounding skin.

Key Features and Advantages

Technology:
The 980nm diode laser combines focused laser output with adjustable pulse and frequency settings to target visible vascular concerns while helping protect the surrounding skin.

Adjustable Settings:
The energy level can be adjusted from 1–30W, with a pulse width of 15–100ms and frequency of 1–5Hz. This allows operators to customize the settings based on different service needs.

Design and Interface:
The machine features an 8.0" color LCD touchscreen, English or OEM language options, and a compact air-cooled design. No regular consumables are required for daily operation.

Advantages:

• Focused 980nm laser energy for visible spider veins and vascular concerns

• Adjustable 1–30W output power for flexible operation

• Narrow 0.2–0.5mm focused beam for more precise targeting

• Touchscreen interface for simple parameter adjustment

• Portable body design for easier placement and transport

• Air cooling system for convenient daily use

• Designed for professional beauty and aesthetic businesses

Ease of Use and Service Value

The 980nm diode laser system is designed with a professional treatment handpiece, touchscreen control, and adjustable laser settings. Operators can adjust power, pulse width, frequency, and aiming beam brightness directly on the interface.

For salons and aesthetic businesses, this device supports focused spider vein and vascular care services with a compact machine body, simple setup, and no daily consumable requirement.

Specifications

• Voltage: 110 V / 220 V; 50 Hz / 60 Hz

• Output: Fiber-Optic Coupling

• Laser Wavelength: 980 nm

• Pulse Width: 15–100 ms

• Frequency: 1–5 Hz

• Mode: Pulse Mode

• Fiber Length: 2 m

• Display: 8.0" Color LCD Touchscreen

• Language: English or OEM

• Aiming Beam: 650 nm ±10 nm diode laser, 5 mW max, adjustable brightness

• Light Delivery System: Detachable fiber system, ≤200 μm core size, SMA 905 connector

• Safety Classification: Class I, Type B

• Cooling System: Air Cooling

• Unit Dimensions: 13.8" × 11.8" × 6.9" (35 × 30 × 17.5 cm)

• Net Weight: 11.0 lbs (5 kg)

• Package Dimensions: 18.1" × 17.3" × 10.6" (46 × 44 × 27 cm)

• Gross Weight: 19.8 lbs (9 kg)

Package List

• Machine Host: 1 pc

• Power Cord: 1 pc

• Laser Handle: 1 pc

• Warranty Card: 1 pc

• User Manual: 1 pc
