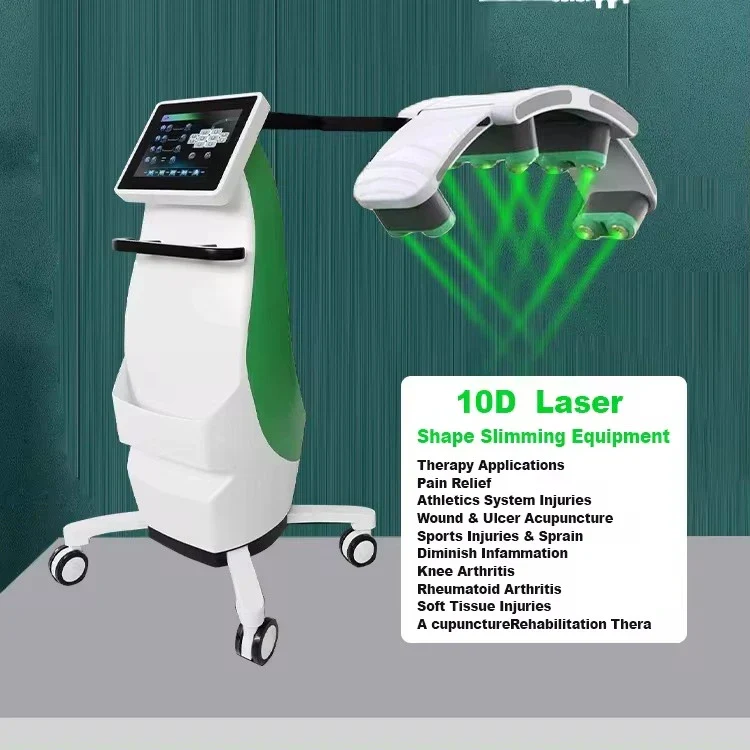

The EchoX Laser Lipo Slimming Device uses non-invasive Low-Level Laser Therapy (LLLT) to support body contouring and circumference-reduction treatments. It delivers selected laser wavelengths—532nm green light, 635nm red light, or a red/green combination—toward the target area to reach the subcutaneous fat layer. During the treatment, laser energy helps create temporary openings in the fat cell membrane, allowing lipid contents to be released into the intercellular space. These released lipids are then processed through the body’s natural metabolic and lymphatic pathways, helping reduce the size of fat cells and support a more contoured appearance.

Benefits of EchoX Laser Lipo Treatment

1. Non-Sensory Fat Reduction:
   EchoX uses low-intensity 532nm green light, 635nm red light, or red/green mixed light to target selected body areas without direct skin contact. The treatment is designed to be low-sensation and comfortable for body contouring services.

2. Circumference Reduction & Body Shaping:
   The system helps support circumference-reduction treatments for common areas such as the abdomen, waist, back, buttocks, thighs, arms, knees, and neck.

3. Waist-Focused Contouring:
   According to the device manual, this technology is especially positioned for waist circumference reduction compared with some other non-invasive body contouring methods.

4. Multi-Area Body Contouring Support:
   Beyond fat-reduction support, the treatment may also help stimulate collagen regeneration and improve the appearance of skin firmness in the treated area.

5. No Downtime for Daily Activities:
   EchoX offers a non-invasive treatment experience with no required recovery period. Clients can typically return to normal daily activities after the session.

Advanced Features of the EchoX Device

1. 10 Laser Heads:
   Equipped with 10 laser treatment heads that can work simultaneously to provide broader coverage for body contouring sessions.

2. 360° Rotating Scan:
   The rotating laser design helps cover the target area more evenly, supporting efficient treatment across larger body zones.

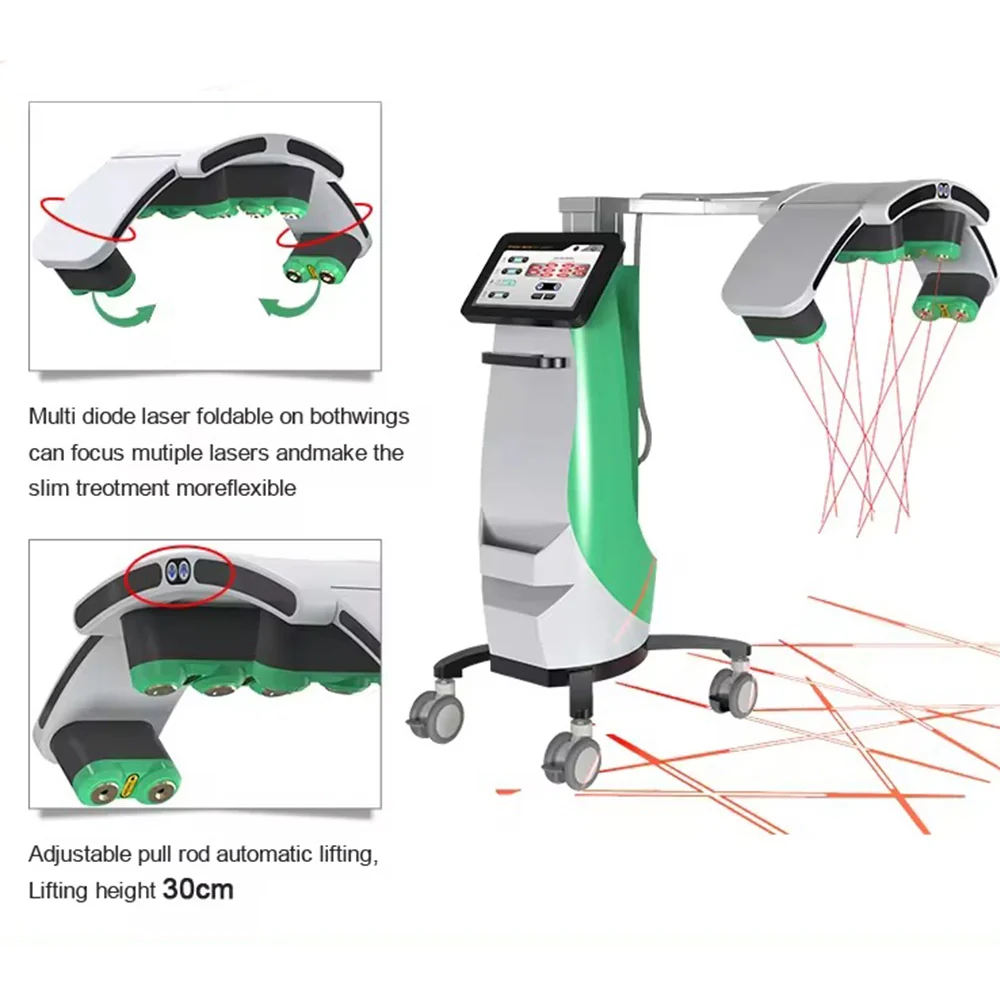

3. Curved Double-Wing Design:
   The foldable, curved double-wing structure is designed to fit different body contours and expand treatment coverage.

4. Dual Touch-Screen Operation:
   EchoX features a 10.4″ host touch screen and a 7″ laser touch screen, allowing easier parameter control during treatment.

5. Electric Height Adjustment:
   The electric lift system allows the laser unit to move vertically, making it easier to match different beauty bed heights and treatment positions.

Light Wavelengths

532nm Green Light:
Used as one of the main LLLT wavelength options for non-invasive laser lipo body contouring. It helps target the subcutaneous fat layer and supports the fat-release process described in the working principle.

635nm Red Light:
Available as a red-light option for body contouring treatments. It can also be combined with 532nm green light for a mixed-light treatment mode, giving salons more flexibility for different service plans.

532nm + 635nm Mixed Light:
 Combines green and red light in one treatment setting to support broader laser lipo applications for waist, abdomen, back, thighs, arms, neck, and other body areas.

Specifications

• Model: EchoX

• Voltage: AC 110V/220V, 50–60 Hz

• Power: 150 W

• Fuse: 10A

• Wavelengths: 532nm ±10nm Green Light / 635nm ±10nm Red Light

• Laser Configuration: 532nm Green Light / 635nm Red Light / 532nm + 635nm Mixed Light

• Display: 10.4″ Touch Screen

• Operating Modes: Continuous Light / Fast Flash / Slow Flash

• Energy Intensity: Levels 1–3, adjustable

• Rotating Speed: Levels 1–3, adjustable

• Laser Single-Head Power: 500 mW

• Treatment Heads: 10 Laser Heads

• Treatment Coverage: Approx. 1.2″ × 31.5″ (30 × 800 mm)

• Air Case Dimensions: 30.3″ × 24.0″ × 43.7″ (77 × 61 × 111 cm)

• Gross Weight: Approx. 132.3 lbs (60 kg)

• Warranty: 36 Months

• Logo Customization: Support
