This multifunctional workstation combines OPT SHR/IPL hair removal, Q-Switched Nd: YAG tattoo and pigment care, and bipolar RF facial lifting into one integrated system. It comes equipped with an OPT SHR/IPL treatment handle, a Q-Switched Nd: YAG laser handle, and an RF facial lifting handle, helping salons expand their service menu with one device. The machine features dual touch-control displays for easier operation, while logo customization is available for businesses that want a more branded equipment setup.

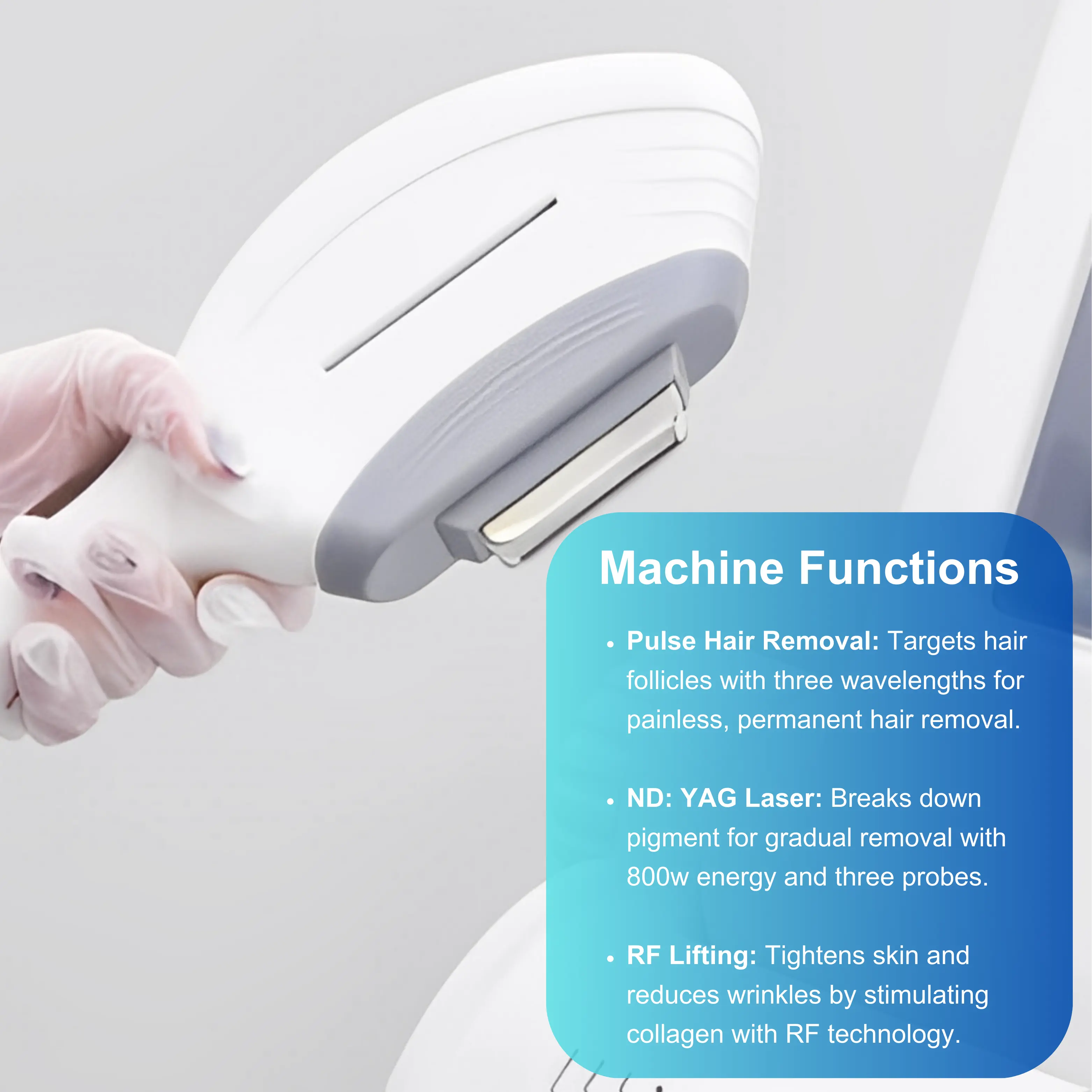

Machine Functions

OPT SHR / IPL Hair Removal
Uses a sliding treatment technique with selectable wavelength filters to target melanin in the hair follicle area while helping protect the surrounding skin. The pulsed light energy is absorbed by melanin and converted into heat, helping reduce unwanted hair growth over repeated sessions. The sapphire cooling contact helps create a more comfortable treatment experience.

Q-Switched Nd: YAG Laser
Uses Q-Switched Nd: YAG laser energy to break tattoo ink and pigment particles into smaller fragments. These fragments are then gradually processed through the body’s natural metabolic response, helping fade the appearance of tattoos and visible pigmentation over a series of treatments.

RF Lifting
Uses bipolar RF energy with adjustable output modes to deliver controlled heat into the skin tissue. This helps support collagen renewal, improve the appearance of skin firmness, and reduce the look of fine lines for a smoother, lifted-looking facial contour.

Specifications

• Voltage: AC 220V/110V, 50–60 Hz

• Power: 2,000W

• Technologies: OPT SHR / E-Light IPL / Bipolar RF / Q-Switched Nd: YAG

• Display: 8" + 5.7" Touch Screens

• Cooling System: Water Cooling + Semiconductor Refrigeration + Air Cooling

• IPL Spectral Range: 480/530/640–1200nm

• Treatment Area: 15 × 50 mm²

• IPL Energy: 1–50 J/cm²

• E-Light Pulse Width: 2–99ms

• SHR Pulse Width: 0.1–7.0ms

• SHR Frequency: 1–10Hz

• RF Treatment Tips: 20mm / 28mm / 35mm§§

• Nd: YAG Wavelengths: 1064nm / 532nm

• Nd: YAG Frequency: 1–5Hz

• Unit Dimensions: 16.1″ × 31.1″ × 28.3″ (41 × 79 × 72 cm)

• Net Weight: 165.3 lbs (75 kg)

• Package Dimensions: 17.7″ × 32.7″ × 30.3″ (45 × 83 × 77 cm)

• Gross Weight: 191.8 lbs (87 kg)

• Warranty: 36 months

• Logo Customization: Support

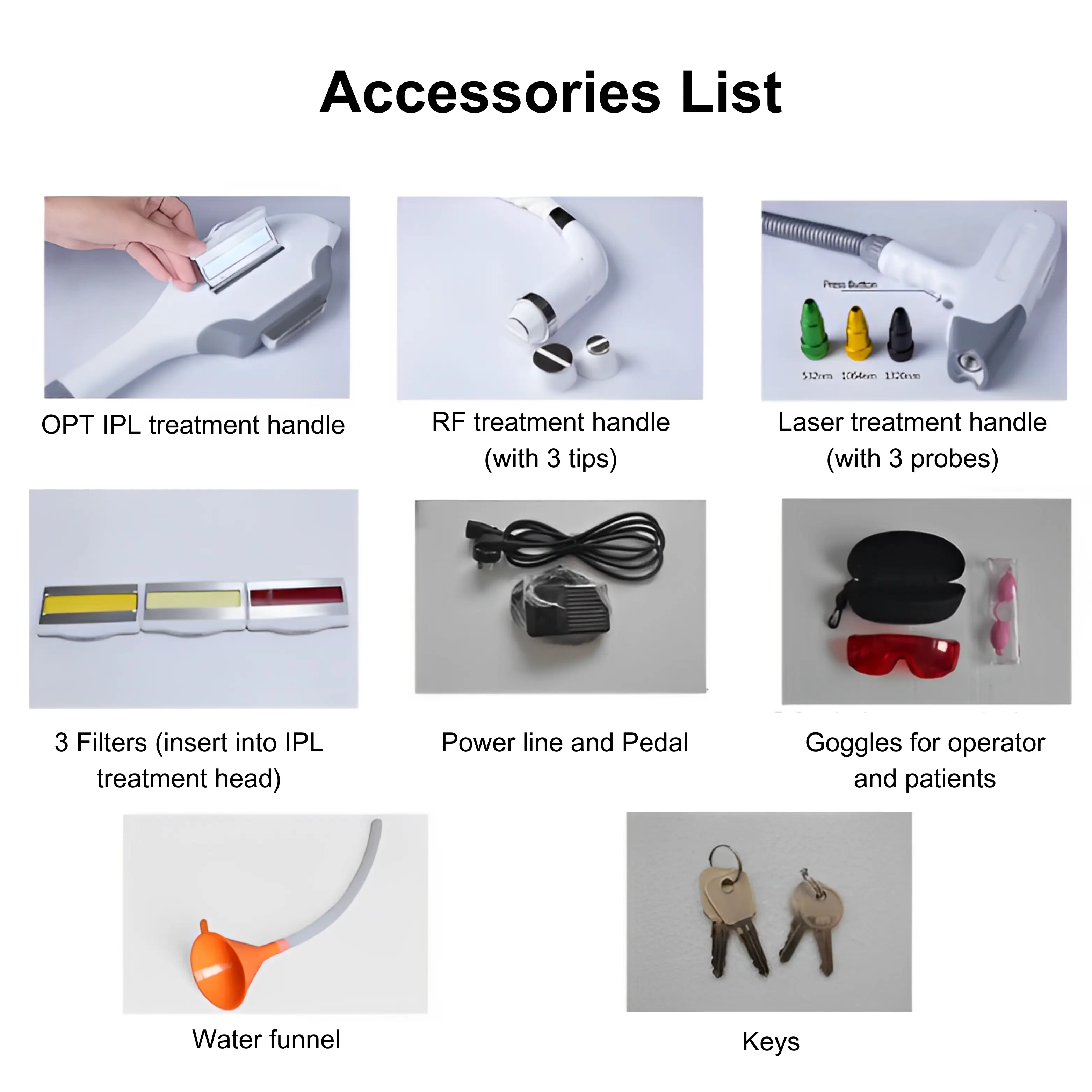

Package List:

1. One machine host
2. One OPT IPL treatment handle
3. One RF treatment handle (with 3 tips)
4. One Laser treatment handle (with 3 probes)
5. Three Filters (insertable into the IPL treatment head)
6. One Water funnel
7. Goggles for both operator and patients
8. Power line and Pedal
9. Keys
